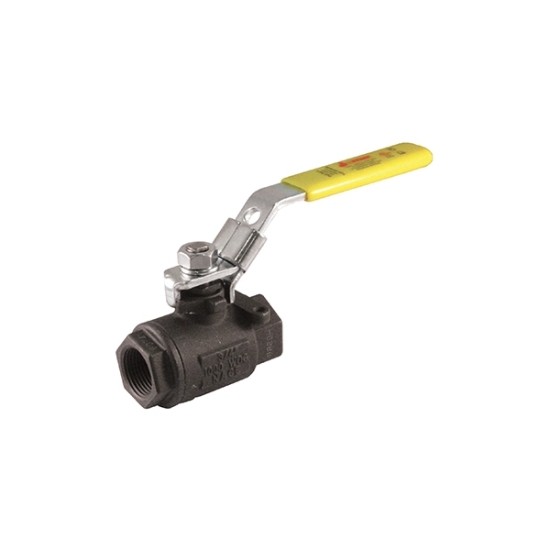

2-Piece Full-Port Ball Valve, Series/Model: Model T-CS-1001N-SS, Nominal Size: 1/4 IN, Connection Type: FNPT, Pressure Rating: 1000 PSI (WOG), 150 PSI (SWP), Carbon Steel Body Material, Locking Lever Handle Operator Type, Handle Material: Carbon Steel, Stem Material: 316 Stainless Steel, Trim Material: Stainless Steel Ball, Packing Material: RPTFE, Carbon Steel Gland, Seat Material: TFM 1600 Hostaflon®, Seal Material: TFM 1600 Hostaflon®, Material Standard: Body: Grade WCB, Handle: ASTM A283, Ball: Grade CF8M, Material Specification: Gland: AISI 1045, Industry Standards: C/US UL Listed, MSS-SP-110, MSS-SP-61, MSS-SP-82, ANSI B16.34, API 598, NACE Certified, 2.2 IN Width, Lead Free: No, Other Physical Dimension: 2.2 IN Inlet Center To Top Of Handle, 4.21 IN Handle Length, Additional Specifications: Torque Rating: 40 IN-LB

• Solid ball construction
• Latch lock handle may be locked in open or closed position
• 29 IN HG vacuum rating
• 100% leak tested
• Wetted surfaces contain less than 0.25% lead content

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/025T100BV_Broc.pdf
• Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Jomar_100-101SSGLH_Catalog.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Jomar_100-971_Specification_Sheet.pdf
