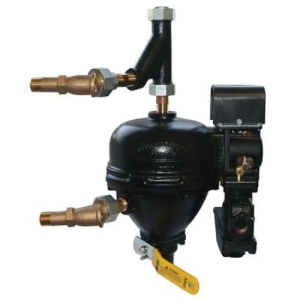

Float Style Mechanical Water Feeder With No. 2 Switch, Series/Model: Series 47-2, Size: 1/2 IN NPT, Power Rating: 125 VA, Voltage Rating: 120/240 VAC At 60 HZ, Amperage Rating: 10.2 FLA At 120 VAC, 5.1 FLA At 240 VAC, Pressure Rating: 150 PSI Water Supply, 25 PSI Boiler, Temperature Rating: 120 DEG F, 10-5/8 IN Width, Industry Standards: UL Listed, CSA Certified

• For steam and hot water boilers with cold water feed
• Continuous maintenance of minimum safe water level, independent of electrical service
• Proportional feed action
• Quick hook-up fittings provided
• Quick-change replaceable cartridge valve and strainer
• No. 2 switch
• Manual reset
• Model 47 can be field upgraded with a No. 2 switch to add low water cut-off function
• Maximum water supply pressure 150 PSI (10.5 KG/SQ-CM)
• Maximum inlet water temperature 120 DEG F (49 DEG C)
• Maximum boiler pressure 25 PSI (1.8 KG/SQ-CM)

• Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/M&M_114400_Catalog.pdf
• Parts List https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/M&M_114400_Parts_List.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/M&M_132800_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/M&M_132800_Specification_Sheet.pdf
