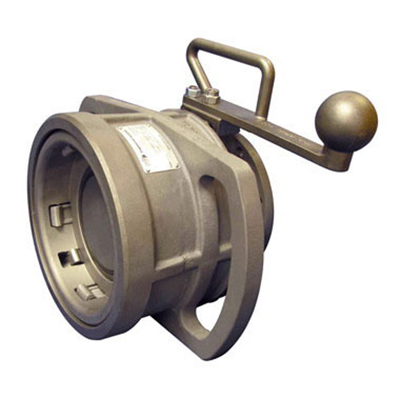

4 1004D3 API BOTTOM LOADER COUPLER
1004D3 Aluminum Large Handle API Bottom Loading Coupler, 4 IN
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 1004D3-0402
- MPN: 1004D3-0402
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Large Handle API Bottom Loading Coupler, Series/Model: Series 1004D3, Nominal Size: 4 IN, Material: Aluminum Body And Stainless Steel Internals, Maximum Pressure: 75 PSI, Additional Specifications: Flow Rate: 600 GPM Maximum; Pressure Drop: 2 - 5 PSI At Maximum Flow Rate
| Item Name | : | API Bottom Loading Coupler |
| Type | : | Large Handle |
| Series/Model | : | Series 1004D3 |
| Nominal Size | : | 4 IN |
| Material | : | Aluminum Body And Stainless Steel Internals |
| Maximum Pressure | : | 75 PSI |
| Additional Specifications | : | Flow Rate: 600 GPM Maximum; Pressure Drop: 2 - 5 PSI At Maximum Flow Rate |
| Weight | : | 21.000 LB |
- Fluorocarbon o-ring seal
- 5-cam design: easy alignment, tight adaptor connections and side-force resistance during loading
- Dual interlocks: ensure that opening cannot occur unless properly connected to an API adaptor
- Superior Sealing: simple, reliable smart-seal design with dual high-performance o-rings
- Pins and small threads eliminated to provide quick, easy access to critical components
- Stainless steel ergo handle design for easy, smooth operation
- Nose seal replaced without requiring removal of coupler from rack, no special tools required
Brochure/Catalog
