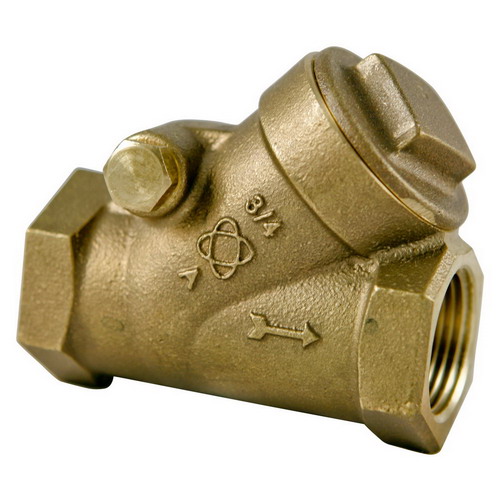

Regrinding Y-Pattern Swing Check Valve, Series/Model: Model T-413-Y-LF, Nominal Size: 1 IN, Connection Type: FNPT, Pressure Rating: 100 PSI Maximum, 200 PSI (CWP) Non-Shock, Class 125 Pressure Class, Temperature Rating: 300 DEG F, Silicon Bronze Body Material, Trim Material: PTFE Disc, Material Standard: Body And Bonnet: ASTM B584, Material Specification: Body And Bonnet: UNS C87850, Industry Standards: MSS-SP-139 Compliant, NSF/ANSI-61-8 Commercial Hot 180 DEG F (Includes Annex F And G) And NSF/ANSI-372, 3.56 IN Width, Lead Free: Yes, Other Physical Dimension: 2.31 IN Inlet Center To Top Of Valve

The NIBCO® horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The check valve features threaded end connections for ease of installation. The check valve is constructed of high quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The NIBCO® check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing check valves may be installed in horizontal positions (or vertical with flow moving up). Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO INC. 5-YR 125% limited warranty.

• Horizontal swing
• Renewable seat and disc
• Lead free marking double oval in body casting
• Silicon bronze bonnet, disc holder, disc hanger and hinge pin plug, stainless steel seat disc washer, nut and hinge pin

Application: For human consumption, including commercial and residential construction

• Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050S413YLFCV_Spec.pdf
• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/100KT58570ULBVA_Broc.pdf
