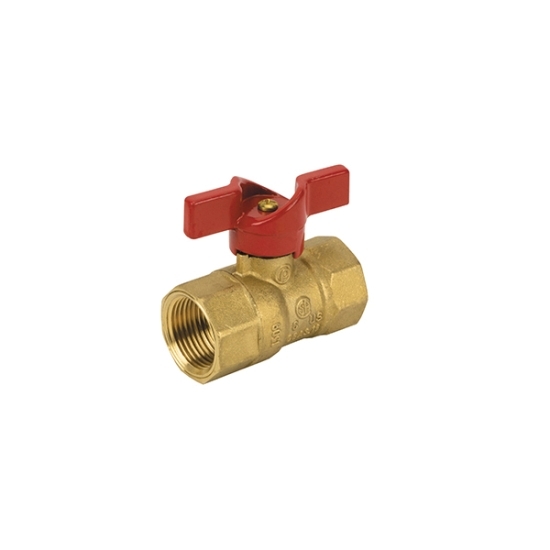

1/2 T-205 RED HDL GAS BALL VALVE
Jomar T-205 Brass Tee Handle 2-Piece Gas Ball Valve, 1/2 IN, FNPT
- Manufacturer: Jomar Valves
- Brand: Jomar
- MGPN: 050T205GBVR
- MPN: 102-503
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-Piece Gas Ball Valve, Series/Model: Model T-205, Nominal Size: 1/2 IN, Connection Type: FNPT, Pressure Rating: 400 PSI (WOG), Temperature Rating: 0 - 450 DEG F, Brass Body Material, Tee Handle Operator Type, Handle Material: Aluminum, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: PTFE, Brass Gland, Seat Material: PTFE, Seal Material: Teflon Seal, Viton O-Ring, Material Specification: Body: CW617N, Stem, Ball And Gland: CW614N, Finish/Color: Chrome Plated Ball, Red Handle, Industry Standards: NSI B1.20.1, CSA Certified, 2.23 IN Width, Lead Free: No, Other Physical Dimension: 1.73 IN Inlet Center To Top Of Handle, 2.23 IN Handle Length
| Item Name | : | Gas Ball Valve |
| Type | : | 2-Piece |
| Series/Model | : | Model T-205 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 400 PSI (WOG) |
| Temperature Rating | : | 0 - 450 DEG F |
| Body Material | : | Brass |
| Operator Type | : | Tee Handle |
| Handle Material | : | Aluminum |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Packing Material | : | PTFE |
| Gland Material | : | Brass |
| Seat Material | : | PTFE |
| Seal Material | : | Teflon Seal, Viton O-Ring |
| Material Specification | : | Body: CW617N, Stem, Ball And Gland: CW614N |
| Finish/Color | : | Chrome Plated Ball, Red Handle |
| Industry Standards | : | NSI B1.20.1, CSA Certified |
| Width | : | 2.23 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 1.73 IN Inlet Center To Top Of Handle, 2.23 IN Handle Length |
| Weight | : | 58.000 LB/Case |
- Valve can be locked in the closed position by reversing the handle
- Triple sealing stem with (2) FKM o-rings and PTFE seal
- 100% leak tested
- 100% Made in Italy
- Leak-proof stem - lifetime warranty
