1/2 T-100 BRASS THRD BALL VALVE

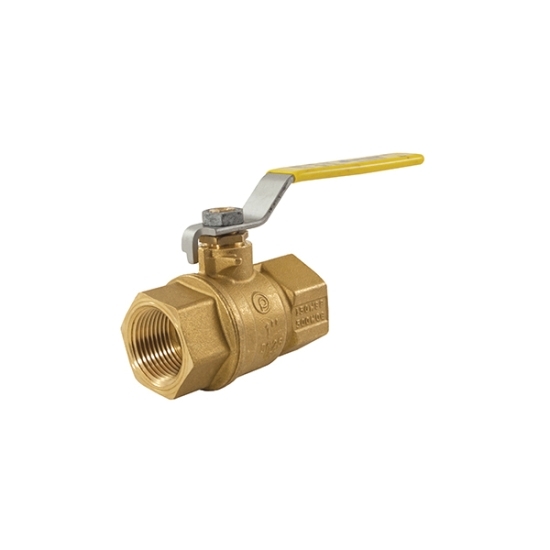

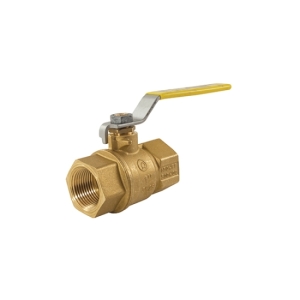

Jomar T-100NE Brass Lever Handle 2-Piece Full-Port Ball Valve, 1/2 IN, FNPT
- Manufacturer: Jomar Valves
- Brand: Jomar
- MGPN: 050T100BV
- MPN: 100-703
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-Piece Full-Port Ball Valve, Series/Model: Model T-100NE, Nominal Size: 1/2 IN, Connection Type: FNPT, Pressure Rating: 600 PSI (WOG), 150 PSI (SWP), Temperature Rating: -40 To 366 DEG F, Brass Body Material, Lever Handle Operator Type, Handle Material: Geomet® Plated Steel, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: TFM 1600 Hostaflon®, Brass Gland, Seat Material: TFM 1600 Hostaflon®, Seal Material: Teflon, Material Specification: Body And Ball: CW617N, Stem And Gland: CW614N, Finish/Color: TEA Coated Ball, Industry Standards: C/US UL Listed, C/US CSA Certified, FM Approved, MSS-SP-110, 2.45 IN Width, Lead Free: No, Other Physical Dimension: 1.53 IN Inlet Center To Top Of Handle, 2.95 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 16.82
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Model T-100NE |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 600 PSI (WOG), 150 PSI (SWP) |
| Temperature Rating | : | -40 To 366 DEG F |
| Body Material | : | Brass |
| Operator Type | : | Lever Handle |
| Handle Material | : | Geomet® Plated Steel |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Packing Material | : | TFM 1600 Hostaflon® |
| Gland Material | : | Brass |
| Seat Material | : | TFM 1600 Hostaflon® |
| Seal Material | : | Teflon |
| Material Specification | : | Body And Ball: CW617N, Stem And Gland: CW614N |
| Finish/Color | : | TEA Coated Ball |
| Industry Standards | : | C/US UL Listed, C/US CSA Certified, FM Approved, MSS-SP-110 |
| Width | : | 2.45 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 1.53 IN Inlet Center To Top Of Handle, 2.95 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 16.82 |
| Weight | : | 64.000 LB/Case |
- Blow-out proof stem design
- Triple sealing stem with (2) FKM o-rings and second generation PTFE seal
- 100% leak tested
- 100% Made in Italy
- Leak-proof stem - lifetime warranty
- 29 IN HG vacuum rating
