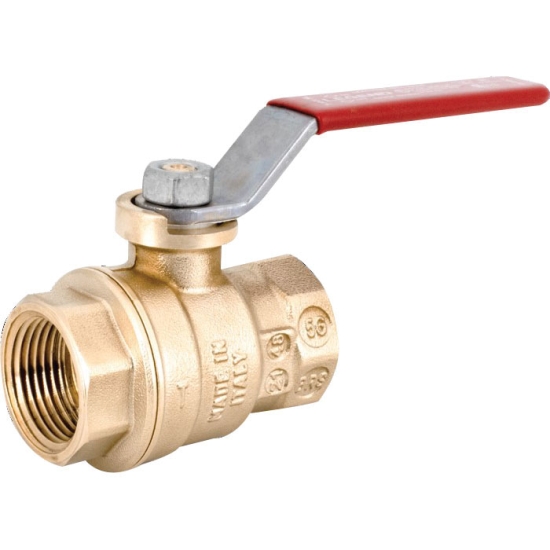

Legend T-1001 Forged Brass Lever Handle Full-Port Ball Valve, 1/8 IN, FNPT
Full-Port Ball Valve, Series/Model: Model T-1001, Nominal Size: 1/8 IN, Connection Type: FNPT, Pressure Rating: 150 PSI (WSP), 600 PSI (CWP), Forged Brass Body Material, Lever Handle Operator Type, Handle Material: Steel, Stem Material: Forged Brass, Trim Material: Forged Brass Cavity Ball, Seat Material: TFM, Seal Material: Viton O-Ring, Material Specification: Body: UNS C37700, Finish/Color: Chrome Plated Ball, Dacromet Coated Handle, Industry Standards: MSS-SP-110 Compliant, CSA Certified, UL Listed 44R8, ANSI/ASME B1.20.1, Lead Free: No
Item Name | : | Ball Valve |
Type | : | Full-Port |
Series/Model | : | Model T-1001 |
Nominal Size | : | 1/8 IN |
Connection Type | : | FNPT |
Pressure Rating | : | 150 PSI (WSP), 600 PSI (CWP) |
Body Material | : | Forged Brass |
Operator Type | : | Lever Handle |
Handle Material | : | Steel |
Stem Material | : | Forged Brass |
Trim Material | : | Forged Brass Cavity Ball |
Seat Material | : | TFM |
Seal Material | : | Viton O-Ring |
Material Specification | : | Body: UNS C37700 |
Finish/Color | : | Chrome Plated Ball, Dacromet Coated Handle |
Industry Standards | : | MSS-SP-110 Compliant, CSA Certified, UL Listed 44R8, ANSI/ASME B1.20.1 |
Lead Free | : | No |
