8 77 PNTD COUPLING W/O GSKT

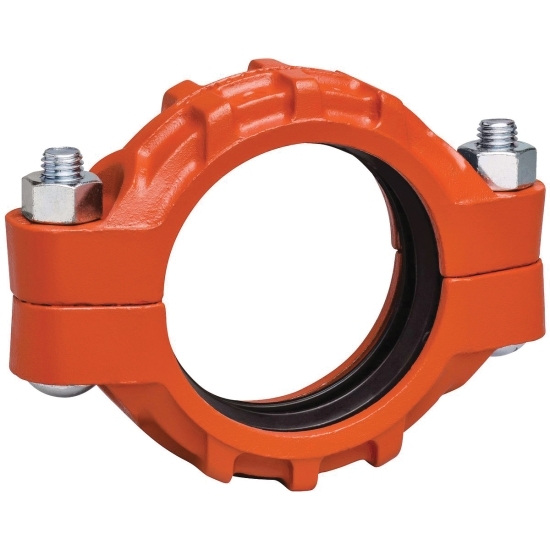

Victaulic Style 77 Orange Enamel Painted Ductile Iron Flexible Coupling With Grade O Gasket, 8 IN, 14-3/4 IN L, Grooved
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 800P77CO
- MPN: L080077PO0
- UPC: 688304459900
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Flexible Coupling With Grade O Gasket, Series/Model: Style 77, Nominal Size: 8 IN, Connection Type: Grooved, Material: Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Painted, Outside Diameter: 8-5/8 IN, Length: 14-3/4 IN, Maximum Pressure: 800 PSI, Industry Standards: UL And CUL Listed, FM And CTP Approved, Other Physical Dimension: 2-1/2 IN Width, (2) 7/8 X 5 IN Bolt/Nut, 0 - 0.13 IN Allowable Pipe End Separation, 11 IN Body Outside Diameter, Domestic/Import: Import, Additional Specifications: End Load: 46740 LB Maximum
| Item Name | : | Flexible Coupling With Grade O Gasket |
| Series/Model | : | Style 77 |
| Nominal Size | : | 8 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Painted |
| Outside Diameter | : | 8-5/8 IN |
| Length | : | 14-3/4 IN |
| Maximum Pressure | : | 800 PSI |
| Industry Standards | : | UL And CUL Listed, FM And CTP Approved |
| Other Physical Dimension | : | 2-1/2 IN Width, (2) 7/8 X 5 IN Bolt/Nut, 0 - 0.13 IN Allowable Pipe End Separation, 11 IN Body Outside Diameter |
| Domestic/Import | : | Import |
| Additional Specifications | : | End Load: 46740 LB Maximum |
| Weight | : | 20.800 LB |
- Cross-ribbed, two piece housing construction
- Pressure rated up to 1000 PSI/6895 KPA/69 BAR
