2-1/2 X 3/4 COPPER FPT MECH TEE BOLTED BRANCH OUTLET W/E-GSKT

2-1/2 X 3/4 COPPER FPT MECH TEE BOLTED BRANCH OUTLET W/E-GSKT

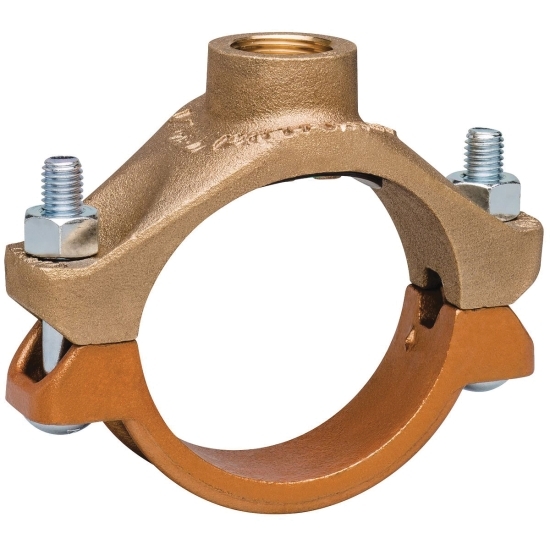

Victaulic Mechanical-T® Style 622 Copper Colored Alkyd Enamel Coated Cast Bronze Upper/Ductile Iron Lower Bolted Branch Outlet With Grade E Gasket, 2-1/2 X 3/4 IN, FNPT

Manufacturer: Victaulic Company
Brand: Victaulic
MGPN: 250075622MT
MPN: CB97622CE0
CPN:

UPC: 688304985454
Min. Order Qty: 1
Qty. Interval: 1
Availability:
See All Availability

Price:
Qty Add To Cart
My Favorites
Add / Remove CPN
888-756-4110 888-756-4110

Nominal Size
- 2-1/2 X 3/4 IN 2-1/2 X 3/4 IN
  Nominal Size
  2-1%2F2+X+3%2F4+IN+
- 2-1/2 X 1 IN 2-1/2 X 1 IN
  Nominal Size
  2-1%2F2+X+1+IN+
- 2-1/2 X 1-1/2 IN 2-1/2 X 1-1/2 IN
  Nominal Size
  2-1%2F2+X+1-1%2F2+IN+
- 3 X 3/4 IN 3 X 3/4 IN
  Nominal Size
  3+X+3%2F4+IN+
- 3 X 1 IN 3 X 1 IN
  Nominal Size
  3+X+1+IN+
- 3 X 1-1/2 IN 3 X 1-1/2 IN
  Nominal Size
  3+X+1-1%2F2+IN+
- 4 X 3/4 IN 4 X 3/4 IN
  Nominal Size
  4+X+3%2F4+IN+
- 4 X 1 IN 4 X 1 IN
  Nominal Size
  4+X+1+IN+
- 4 X 1-1/2 IN 4 X 1-1/2 IN
  Nominal Size
  4+X+1-1%2F2+IN+

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

Mechanical-T® Bolted Branch Outlet With Grade E Gasket, Series/Model: Style 622, Nominal Size: 2-1/2 X 3/4 IN, Connection Type: FNPT, Material: Cast Bronze Upper/Ductile Iron Lower, Material Standard: ASTM A536 Grade 65-45-12, ASTM B584, Finish/Color: Copper Colored Alkyd Enamel Coated, Length: 5.9 IN, Maximum Pressure: 300 PSI, Industry Standards: UL, ULC And UPC Listed, ANSI/NSF 61, Other Physical Dimension: 2-3/4 IN Width, 1-1/2 IN Hole Diameter, 2.05 IN Center Of Run To Engaged Pipe End, 2.61 IN Center Of Run To End Of Fitting, 1/2 X 3 IN Bolt/Nut, Domestic/Import: Import

Sub Brand	:	Mechanical-T®
Item Name	:	Bolted Branch Outlet With Grade E Gasket
Series/Model	:	Style 622
Nominal Size	:	2-1/2 X 3/4 IN
Connection Type	:	FNPT
Material	:	Cast Bronze Upper/Ductile Iron Lower
Material Standard	:	ASTM A536 Grade 65-45-12, ASTM B584
Finish/Color	:	Copper Colored Alkyd Enamel Coated
Length	:	5.9 IN
Maximum Pressure	:	300 PSI
Industry Standards	:	UL, ULC And UPC Listed, ANSI/NSF 61
Other Physical Dimension	:	2-3/4 IN Width, 1-1/2 IN Hole Diameter, 2.05 IN Center Of Run To Engaged Pipe End, 2.61 IN Center Of Run To End Of Fitting, 1/2 X 3 IN Bolt/Nut
Domestic/Import	:	Import
Weight	:	3.100 LB

Provides a direct branch connection at any location a hole can be cut in the copper tubing
For use on types K, L, and M copper tubing
Pressure rated up to 300 PSI/2068 KPA/21 BAR
Operating temperature dependent on gasket selection

Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/1000716CV_Broc.pdf
Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_1000G107CE_Catalog.pdf
Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C030150PE1_Instruction_Installation_Manual.pdf
Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_CB97622CE0_Specification_Sheet.pdf
