16 304SS U-BOLT PHD 94

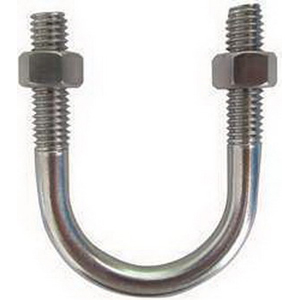

304 Stainless Steel U-Bolt, 16 IN, 8960 LB
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 16004SUB
- MPN: 16004SUB
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
U-Bolt, Series/Model: Model 94, Nominal Size: 16 IN, Thread Size: 7/8 X 4-1/4 IN, Material: 304 Stainless Steel, Load Capacity: 8960 LB At 650 DEG F, Industry Standards: MSS ANSI/SP-69 And SP-58 Type 24, Federal Specification A-A-1192A Type 24, Other Physical Dimension: 11-1/4 IN Tangent, 17 IN Bolt Center To Center
| Item Name | : | U-Bolt |
| Series/Model | : | Model 94 |
| Nominal Size | : | 16 IN |
| Thread Size | : | 7/8 X 4-1/4 IN |
| Material | : | 304 Stainless Steel |
| Load Capacity | : | 8960 LB At 650 DEG F |
| Industry Standards | : | MSS ANSI/SP-69 And SP-58 Type 24, Federal Specification A-A-1192A Type 24 |
| Other Physical Dimension | : | 11-1/4 IN Tangent, 17 IN Bolt Center To Center |
Application: Designed for use as a support, anchor or guide for various types of pipe
