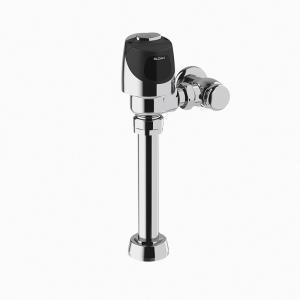

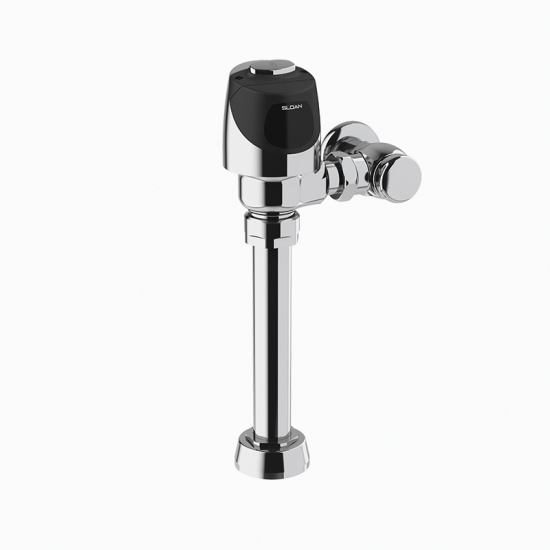

G2® Optima® Plus Low Consumption Sensor Operated Automatic Flush Valve, Series/Model: Model 8111, Toilet Fixture, 1 IN Inlet Size, Rough-In: 11-1/2 IN, 1-1/2 IN Spud Coupling, Valve Design: Diaphragm, 1.6 GPF Gallons Per Flush, Pressure Rating: 15 - 100 PSI, Connection Location: Top, Power Source: (4) AA Batteries, Sensor Range: 22 - 42 IN, Material: Semi-Red Brass, Exposed/Concealed: Exposed, Finish/Color: Chrome Plated, Industry Standards: ADA Compliant, ASSE 1037, ANSI/ASME A122.19.2, UPC Listed By IAPMO, 16-1/2 IN Height

• Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay and Courtesy Flush® override button
• Adjustable tailpiece
• High copper, low zinc brass castings for dezincification-resistance
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

• Brochure https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Sloan_3010000_Brochure.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Sloan_3250400_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Sloan_3250400_Specification_Sheet.pdf
