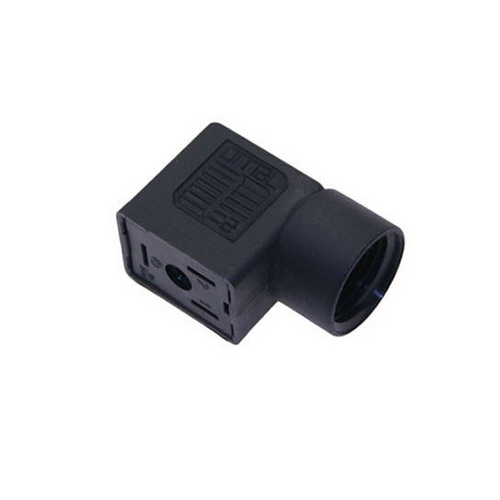

Black Polyamide Field Wireable Form B Solenoid Valve Conduit DIN Connector, 1/2 IN, FNPT
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
Field Wireable Form B Solenoid Valve Conduit DIN Connector, Size: 1/2 IN, Connection Type: FNPT, Temperature Rating: -40 To 176 DEG F, Material: Polyamide, Finish/Color: Black, 1.61 IN Width, 1.2 IN Height, Additional Specifications: Contacts: Silver Plated Copper Alloy; Insert: Polyamide; Gasket: Thermoplastic; Screw: Zinc Plated Steel; Number Of Poles- 2 Poles + Ground; Voltage: 250 VAC/VDC; Amperage: 10 A; Ingress Protection: IP65; Cable Range: 20 - 16 AWG
Additional Specifications | : | Contacts: Silver Plated Copper Alloy; Insert: Polyamide; Gasket: Thermoplastic; Screw: Zinc Plated Steel; Number Of Poles- 2 Poles + Ground; Voltage: 250 VAC/VDC; Amperage: 10 A; Ingress Protection: IP65; Cable Range: 20 - 16 AWG |
Connection Type | : | FNPT |
Finish/Color | : | Black |
Height | : | 1.2 IN |
Item Name | : | Solenoid Valve Conduit DIN Connector |
Material | : | Polyamide |
Size | : | 1/2 IN |
Temperature Rating | : | -40 To 176 DEG F |
Type | : | Field Wireable, Form B |
Weight | : | 0.030 LB |
Width | : | 1.61 IN |
