SKINNER SOLENOID VALVE

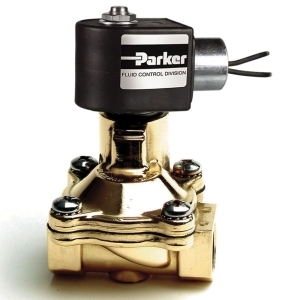

Parker Skinner™ 7321GBN64N00N0C111P3 Brass 2-Way Normally Closed Solenoid Valve, 1 IN, FNPT, 110 - 120 VAC
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 7321GBN64N00N0C111P3
- MPN: 7321GBN64N00N0C111P3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Parker's 2-way normally closed 1 IN NPT solenoid valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases.
| Sub Brand | : | Skinner™ |
| Item Name | : | Solenoid Valve |
| Nominal Size | : | 1 IN |
| Connection Type | : | FNPT |
| Number Of Ports/Ways | : | 2-Way |
| Actuation | : | Internal Pilot Operated |
| Configuration | : | Normally Closed |
| Media | : | Air, Water, Light Oil And Inert Gas |
| Pressure Rating | : | 5 PSI Minimum, 230 PSI Air/Inert Gas, 230 PSI Water, 230 PSI Light Oil |
| Temperature Rating | : | 185 DEG F |
| Orifice | : | 1 IN |
| Body Material | : | Brass |
| Seal Material | : | NBR |
| Coil Insulation Class | : | Class F |
| Power Rating | : | 10 W |
| Voltage Rating | : | 110 - 120 VAC At 50/60 HZ |
| Enclosure | : | NEMA 4X, Nut And Washer |
| Electrical Connection | : | 1/2 IN NPT Conduit, 18 IN Leads |
| Industry Standards | : | UL Listed And CSA Certified |
| Width | : | 3.94 IN |
| Height | : | 4-3/4 IN |
| Additional Specifications | : | Flow Co-Efficient (Cv): 12.5 |
| Brand | : | Parker |
| Anti-Water Hammer | : | No |
- High quality standards of Skinner® and Gold Ring™ brand
- Modular design
- Long life
- Tight shut-off
Brochure/Catalog
