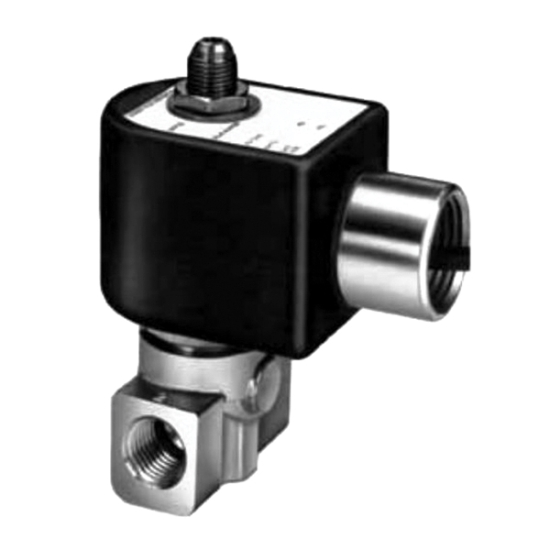

Parker Skinner™ 7131TBN2JV00 Brass 3-Way Normally Closed Universal Solenoid Valve Body, 1/4 IN, FNPT

3-way direct acting valves are suitable for low to medium pressure applications that do not require a minimum operating pressure differential.

Sub Brand	:	Skinner™
Item Name	:	Solenoid Valve Body
Type	:	Universal
Nominal Size	:	1/4 IN
Connection Type	:	FNPT
Number Of Ports/Ways	:	3-Way
Actuation	:	Direct Acting
Configuration	:	Normally Closed
Media	:	Air, Water, Light Oil And Inert Gas
Pressure Rating	:	0 PSI Minimum, 150 PSI Air/Inert Gas, Water And Light Oil
Temperature Rating	:	185 DEG F
Orifice	:	5/64 IN
Body Material	:	Brass
Seal Material	:	FKM
Power Rating	:	10 W
Industry Standards	:	UL Listed And CSA Certified
Width	:	2.76 IN
Height	:	3.55 IN
Additional Specifications	:	Flow Co-Efficient (Cv): 0.17 - 0.31
Brand	:	Parker
Anti-Water Hammer	:	No

Valves can be mounted in any position
The preferred orientation is with the coil vertical and upright
Lubricated air, inert gases, water, light oil (300 SSU) and additional fluids compatible with materials of construction
Use of non-lubricated gaseous media can affect valve life
