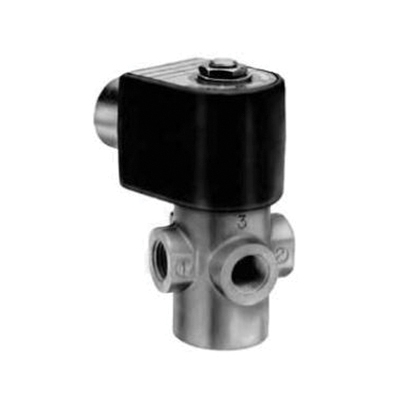

Skinner™ Solenoid Valve, Nominal Size: 1/4 IN, Connection Type: FNPT, Ports/Ways: 3-Way, Actuation: Direct Acting, Configuration: Normally Closed, Media: Air, Water, Light Oil And Inert Gas, Pressure Rating: 0 PSI Minimum, 140 PSI Air/Inert Gas, 140 PSI Water, 140 PSI Light Oil, Temperature Rating: 200 DEG F, 3/32 IN Orifice, Forged Brass Body Material, Trim Material: NBR, Coil Insulation Class: Class 155, Power Rating: 11 W, Voltage Rating: 110 - 120 VAC At 50/60 HZ, Enclosure: NEMA 4, 4X, Electrical Connection: 18 IN Leads, Industry Standards: UL Listed And CSA Certified, 2.76 IN Width, Other Physical Dimension: 2.78 IN Inlet Center To Top Of Valve

• Valves can be mounted in any position, the preferred orientation is with the coil vertical and upright

Application: For single acting spring return cylinder control, selection or diversion of process media, HVACs damper control, instrumentation, pneumatic positioning, automatic dispensing equipment, gas sampling, small compressors, water treatment, air dryers

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/02F20C1106AAF4C05_Broc.pdf
