3/4 150 RELIEF VALVE

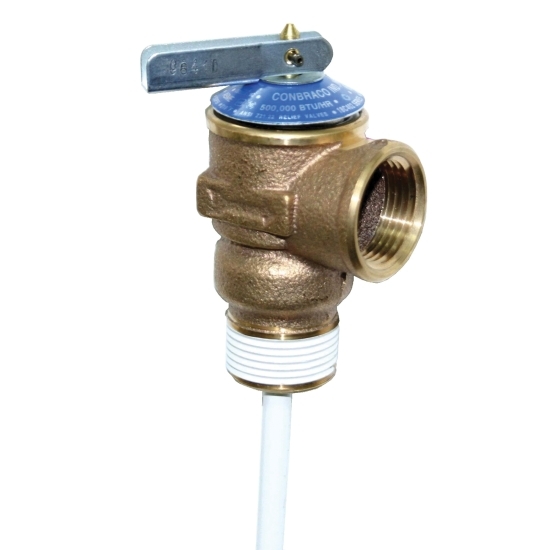

Apollo Valves 18C-402 Cast Bronze Relief Valve With 3 IN Element, 3/4 IN, MNPT X FNPT, 150 PSIG
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 07518C40230
- MPN: 18C-402-30
- UPC: 670750818110
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Relief Valve With 3 IN Element, Series/Model: Model 18C-402, Nominal Size: 3/4 IN, Connection Type: MNPT X FNPT, Pressure Rating: 150 PSIG, Temperature Rating: 210 DEG F, Cast Bronze Body Material, Material Standard: Body: ASTM B584, Industry Standards: CSA Certified To ANSI Z21.22, ASME Section IV Rated, Meets HUD/FHA, 3-1/4 IN Height, Lead Free: No, Additional Specifications: Capacity: 105000 BTU/HR
| Additional Specifications | : | Capacity: 105000 BTU/HR |
| Body Material | : | Cast Bronze |
| Connection Type | : | MNPT X FNPT |
| Height | : | 3-1/4 IN |
| Industry Standards | : | CSA Certified To ANSI Z21.22, ASME Section IV Rated, Meets HUD/FHA |
| Item Name | : | Relief Valve With 3 IN Element |
| Lead Free | : | No |
| Material Standard | : | Body: ASTM B584 |
| Nominal Size | : | 3/4 IN |
| Pressure Rating | : | 150 PSIG |
| Series/Model | : | Model 18C-402 |
| Temperature Rating | : | 210 DEG F |
| Weight | : | 64.000 LB |
Automatic temperature and pressure relief valves feature unique non-metallic coating which protects the element against galvanic and electromechanical corrosion by isolating it from the heated water. This coating is electrostatically applied for uniform coverage, then thermo-bonded, resulting in optimum adhesion for extended service life.
- Cast bronze body, stainless steel spring
- Rated at 210 DEG F maximum
- CRN registered in all Canadian provinces and territories
- ASME capacity certified to 500000 BTU/HR
- Made in the USA
