1B BOTTOM AIR VENT

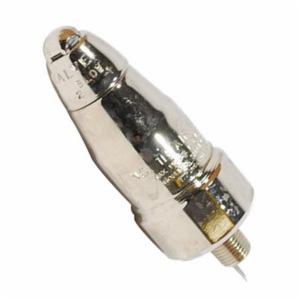

Hoffman 1B Steel Non-Vacuum Bottom Convector Steam Air Vent Valve, 1/4 IN, MNPT
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 1BV
- MPN: 401425
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Non-Vacuum Bottom Air Vent Convector Steam Air Vent Valve, Series/Model: Model 1B, Nominal Size: 1/4 IN, Connection Type: MNPT, Ports/Ways: 6-Port, Pressure Rating: 10 PSIG, Temperature Rating: 140 - 240 DEG F, Steel Body Material, Lead Free: No
| Body Material | : | Steel |
| Connection Type | : | MNPT |
| Item Name | : | Convector Steam Air Vent Valve |
| Lead Free | : | No |
| Nominal Size | : | 1/4 IN |
| Number Of Ports/Ways | : | 6-Port |
| Pressure Rating | : | 10 PSIG |
| Series/Model | : | Model 1B |
| Temperature Rating | : | 140 - 240 DEG F |
| Type | : | Non-Vacuum, Bottom Air Vent |
- Adjustable port for true proportional venting 6 port settings
- Float type vent
- Telescopic siphon tube
- Maximum operating pressure 1.5 PSIG
Brochure/Catalog
