1 BRZ SWT BALL CONE CHECK VALVE

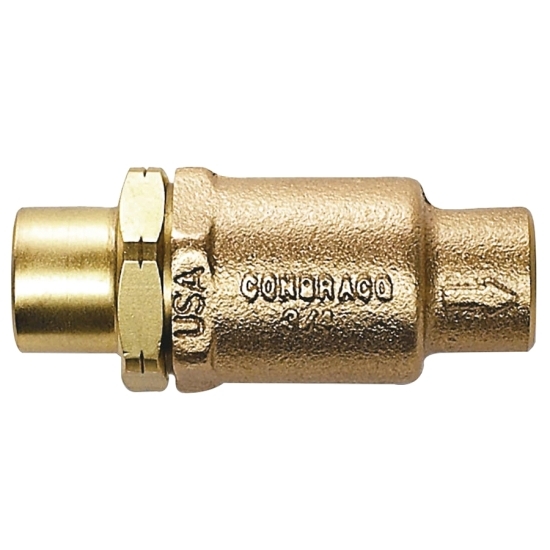

Apollo Valves 61-600 Bronze Standard Ball Cone Check Valve, 1 IN, Female X Female Sweat

  • MPN: 61-605-01
  • MGPN: 1006160501BCCV
  • Manufacturer: CONBRACO INDUSTRIES
  • Brand: Apollo Valves
  • UPC: 670750632952
  • Min Order Qty: 1
  • Qty Interval: 1
  • Availability:
Your Price:
Qty
  • EPM soft seat for bubble tight shut-off, reduced noise and less vibration
  • Spring loaded for fast seating action and center guided so that radial alignment is never needed
  • Straight through flow minimizes velocity change
  • The spring is fully protected from the flow stream, helping extend life of the valve
  • Brass retainer, check valve, guide, steel guide pin, steel spring

Application: For hydronic heating

Item Name : Standard Ball Cone Check Valve
Series/Model : Series 61-600
Nominal Size : 1 IN
Connection Type : Female X Female Sweat
Pressure Rating : 400 PSIG (CWP), 0.2 PSIG Cracking
Flow Rate : 6 GPM
Temperature Rating : 250 DEG F
Body Material : Bronze
Seat Material : EPDM
Material Standard : Body: ASTM B584
Material Specification : Body: UNS C84400
Height : 1.93 IN
Lead Free : No
Other Physical Dimension : 4-1/2 IN Length, 2.12 IN Width Across Flat
