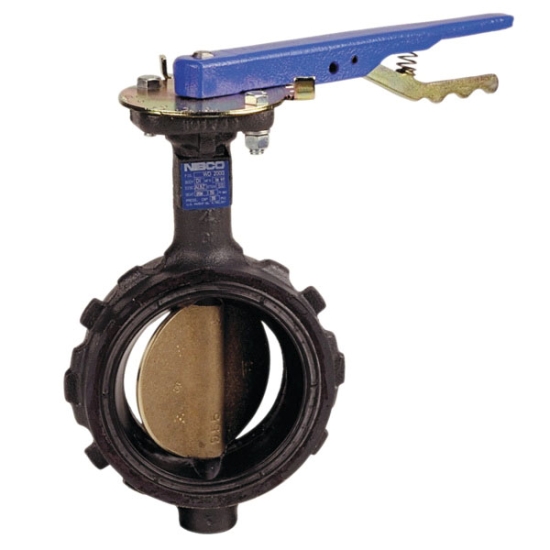

The Nibco® wafer type butterfly valve provides bubble-tight shut-off at 200 PSI. The wafer valve is ideal for commercial and some light industrial process applications including HVAC and vacuum services, in addition to hot and cold potable water.

Wafer Style Butterfly Valve, Series/Model: Model WD2000-5, Nominal Size: 8 IN, Pressure Rating: 200 PSI, Temperature Rating: 225 DEG F Continuous, 250 DEG F Intermittent, Ductile Iron Body Material, Gear Operator Operator Type, Stem Material: 416 Stainless Steel, Trim Material: Aluminum Bronze Disc, Seal Material: EPDM Rubber, Material Standard: Body: ASTM A536, Stem: ASTM A582, Disc: ASTM B148, Material Specification: Disc: Alloy 955, Industry Standards: MSS-SP-67 Compliant, NSF/ANSI 61-8/372 Certified, US Coast Guard Category A, Lead Free: Yes

• Valve pressure rating 200 PSI
• 225 DEG F continuous and 250 DEG F intermittent service
• Wafer style
• EPDM molded-in seat liner
• Aluminum bronze disc
• Stainless steel stem with copper bushings
• Operating mechanism: bare stem, infinite position plate and lock, lever lock, manual gear operator
• Lead-free
• Not recommended for steam service
