1-1/4 CS THRD STD BALL VALVE W/SPRING RTN HDL

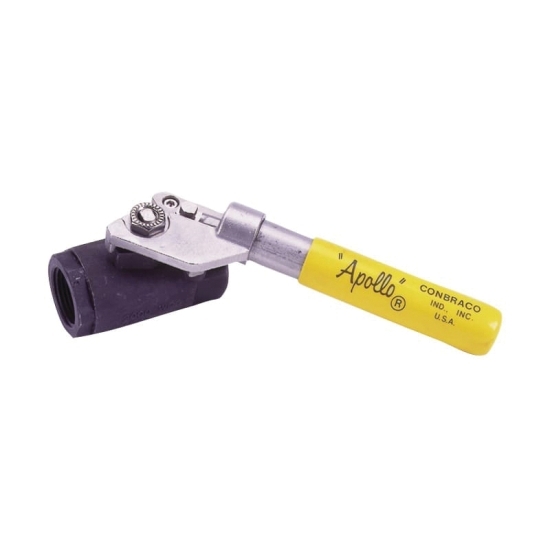

Apollo Valves 89-500 Carbon Steel Lever Handle 2-Piece In-Line Standard Ball Valve, 1-1/4 IN, FNPT
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 1258950601BV
- MPN: 89-506-01
- UPC: 670750786716
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-Piece In-Line Standard Ball Valve, Series/Model: Series 89-500, Nominal Size: 1-1/4 IN, Connection Type: FNPT, Pressure Rating: 1500 PSI (WOG), 150 PSI (SWP), Temperature Rating: -20 To 500 DEG F, Carbon Steel Body Material, Lever Handle Operator Type, Handle Material: Stainless Steel, Stem Material: 316 Stainless Steel, Trim Material: Carbon Steel Ball, Packing Material: MPTFE Stem, Seat Material: Multifill PTFE, Seal Material: PTFE, Material Standard: Body: ASTM A216 Grade WCB, Stem: ASTM A276, Ball: ASTM A108, Finish/Color: Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, 4 IN Width, Lead Free: No, Other Physical Dimension: 9 IN Handle Length
| Item Name | : | In-Line Standard Ball Valve |
| Type | : | 2-Piece |
| Series/Model | : | Series 89-500 |
| Nominal Size | : | 1-1/4 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 1500 PSI (WOG), 150 PSI (SWP) |
| Temperature Rating | : | -20 To 500 DEG F |
| Body Material | : | Carbon Steel |
| Operator Type | : | Lever Handle |
| Handle Material | : | Stainless Steel |
| Stem Material | : | 316 Stainless Steel |
| Trim Material | : | Carbon Steel Ball |
| Packing Material | : | MPTFE Stem |
| Seat Material | : | Multifill PTFE |
| Seal Material | : | PTFE |
| Material Standard | : | Body: ASTM A216 Grade WCB, Stem: ASTM A276, Ball: ASTM A108 |
| Finish/Color | : | Chrome Plated Ball |
| Industry Standards | : | MSS-SP-110 Compliant |
| Width | : | 4 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 9 IN Handle Length |
| Weight | : | 3.960 LB |
- Spring return to close ("01" suffix)
- All components of lever are stainless steel
- Zinc phosphate corrosion protection
- Operating torque is approximately three times standard valve torque
- Blow-out proof stem design
- Adjustable packing gland
- Investment cast components
- Multifill seats
Brochure/Catalog
