3/4 CS THRD STD PORT BALL VALVE

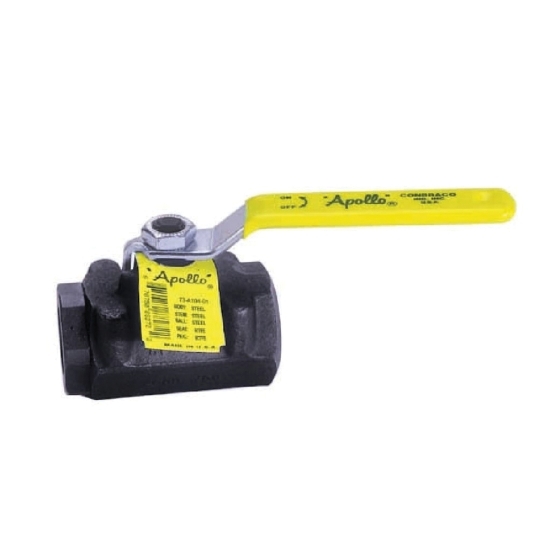

Apollo Valves 73A-100 Carbon Steel Latch-Lock Lever Handle 2-Piece Standard Port In-Line Ball Valve, 3/4 IN, FNPT

Manufacturer: Aalberts integrated piping systems (CONBRACO)
Brand: Apollo Valves
MGPN: 07573A10427ABV
MPN: 73A-104-27
CPN:

Min. Order Qty: 1
Qty. Interval: 1
Availability:
See All Availability

Price:
Qty Add To Cart
My Favorites
Add / Remove CPN
888-756-4110 888-756-4110

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

2-Piece Standard Port In-Line Ball Valve, Series/Model: Series 73A-100, Nominal Size: 3/4 IN, Connection Type: FNPT, Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP), Temperature Rating: -20 To 450 DEG F, 0.81 IN Opening, Carbon Steel Body Material, Latch-Lock Lever Handle Operator Type, Handle Material: Stainless Steel, Stem Material: Carbon Steel Or Stainless Steel, Trim Material: Carbon Steel Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: RPTFE, Material Standard: Body And Stem: ASTM A108, Finish/Color: Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, AAR Approved #E999032, 3.07 IN Width, Lead Free: No, Other Physical Dimension: 2.07 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 30

Item Name	:	In-Line Ball Valve
Type	:	2-Piece, Standard Port
Series/Model	:	Series 73A-100
Nominal Size	:	3/4 IN
Connection Type	:	FNPT
Pressure Rating	:	2000 PSI (CWP), 150 PSI (SWP)
Temperature Rating	:	-20 To 450 DEG F
Opening Size	:	0.81 IN
Body Material	:	Carbon Steel
Operator Type	:	Latch-Lock Lever Handle
Handle Material	:	Stainless Steel
Stem Material	:	Carbon Steel Or Stainless Steel
Trim Material	:	Carbon Steel Ball
Packing Material	:	MPTFE Stem
Seat Material	:	RPTFE
Seal Material	:	RPTFE
Material Standard	:	Body And Stem: ASTM A108
Finish/Color	:	Chrome Plated Ball
Industry Standards	:	MSS-SP-110 Compliant, AAR Approved #E999032
Width	:	3.07 IN
Lead Free	:	No
Other Physical Dimension	:	2.07 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length
Additional Specifications	:	Flow Co-Efficient (Cv): 30
Weight	:	1.270 LB

Forged construction
Raised handle stops
Blow-out proof stem design
Adjustable packing gland
Zinc phosphate corrosion protection
Fire safe to API 607 (requires - 24 suffix)

Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/15073A10701BV_Broc.pdf
Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_72-103-01_Instruction_Installation_Manual.pdf
Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_73A-101-01A_Specification_Sheet.pdf
