2 BRZ 3PC FP BALL VALVE W/LATCH LEVER HDL

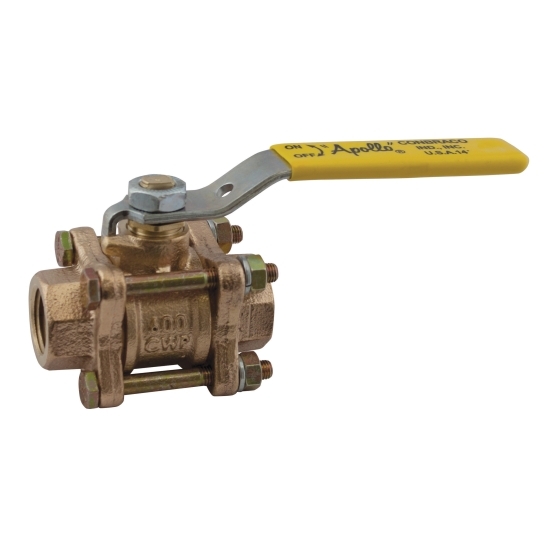

Apollo Valves 82-100 Bronze Latch-Lock Lever Handle 3-Piece Full-Port In-Line Ball Valve, 2 IN, FNPT
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 2008210827BV
- MPN: 82-108-27
- UPC: 670750723162
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
3-Piece Full-Port In-Line Ball Valve, Series/Model: Series 82-100, Nominal Size: 2 IN, Connection Type: FNPT, Pressure Rating: 600 PSI (CWP), 150 PSI (SWP), Temperature Rating: -20 To 450 DEG F, 2 IN Opening, Bronze Body Material, Latch-Lock Lever Handle Operator Type, Handle Material: Stainless Steel, Stem Material: Brass, Trim Material: Brass Ball, Seat Material: RPTFE, Seal Material: RPTFE, Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16, Material Specification: Body: UNS C84400, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, 6.03 IN Width, Lead Free: No, Other Physical Dimension: 3.87 IN Depth, 2.68 IN Inlet Center To Top Of Handle, 8 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 376
| Item Name | : | In-Line Ball Valve |
| Type | : | 3-Piece, Full-Port |
| Series/Model | : | Series 82-100 |
| Nominal Size | : | 2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 600 PSI (CWP), 150 PSI (SWP) |
| Temperature Rating | : | -20 To 450 DEG F |
| Opening Size | : | 2 IN |
| Body Material | : | Bronze |
| Operator Type | : | Latch-Lock Lever Handle |
| Handle Material | : | Stainless Steel |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Seat Material | : | RPTFE |
| Seal Material | : | RPTFE |
| Material Standard | : | Body: ASTM B584, Ball And Stem: ASTM B16 |
| Material Specification | : | Body: UNS C84400 |
| Finish/Color | : | Zinc Plated Handle, Chrome Plated Ball |
| Industry Standards | : | MSS-SP-110 Compliant, CRN: OC10908.5C |
| Width | : | 6.03 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 3.87 IN Depth, 2.68 IN Inlet Center To Top Of Handle, 8 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 376 |
| Weight | : | 14.420 LB |
The Apollo® 82-100 series is designed as an in-line serviceable full port bronze ball valve. SAE grade body bolts and RPTFE seals are standard.
- Dezincification-resistant bronze body
- Adjustable packing gland
- Blow-out proof stem design
- Premium RPTFE seats and seals packing
- Full-port ball configuration in all sizes
- 100% factory tested
- Made in the USA
