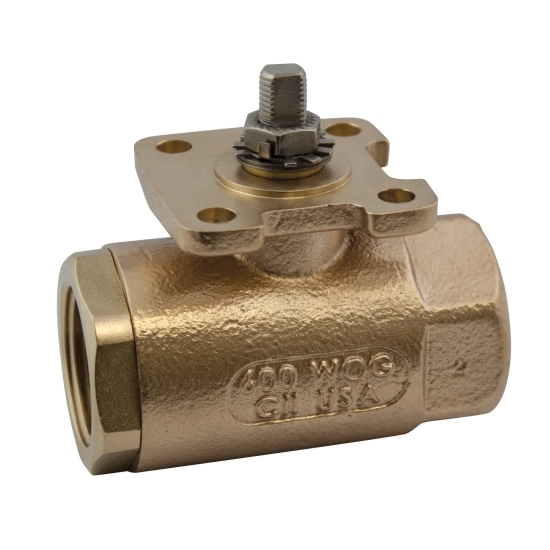

1-1/2 BRZ STD PORT BALL VALVE
Apollo Valves 71-AR Bronze 2-Piece Standard Port Ball Valve, 1-1/2 IN, FNPT
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 15071AR764BV
- MPN: 71-AR7-64
- UPC: 670750873959
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Standard Port |
| Series/Model | : | Series 71-AR |
| Nominal Size | : | 1-1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 600 PSI (CWP), 250 PSI (SWP) |
| Temperature Rating | : | Up To 500 DEG F |
| Opening Size | : | 1-1/4 IN |
| Body Material | : | Bronze |
| Stem Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Ball |
| Packing Material | : | MPTFE Stem |
| Gland Material | : | Brass |
| Seat Material | : | MPTFE |
| Material Standard | : | Body: ASTM B584 |
| Material Specification | : | Body: UNS C84400 |
| Industry Standards | : | MSS-SP-110 Compliant |
| Width | : | 4.34 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 3.16 IN Inlet Center To Top Of Handle |
| Additional Specifications | : | Flow Co-Efficient (Cv): 84 |
| Brand | : | Apollo Valves |
| Firesafe | : | No |
- Multi-piece packing set
- ISO 5211 mounting pad
- Stainless ball and stem
- Blow-out proof stem design
- Adjustable packing gland
- Live loaded packing
