5 150 GARLOCK 3510 GYLON RING GSKT 1/16 THK

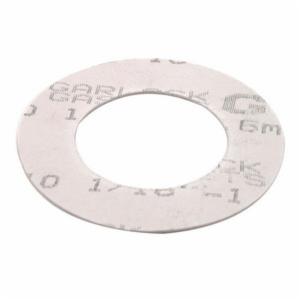

Garlock Gylon® Class 150 Off-White PTFE With Barium Sulfate Filler 3510 Ring Gasket, 5 IN, 1/16 IN T

Manufacturer: Macomb Group Approved
Brand: Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
MGPN: 50015G3510RG
MPN: 50015GAGRG
CPN:

Min. Order Qty: 1
Qty. Interval: 1
Availability:
See All Availability

Price:
Qty Add To Cart
My Favorites
Add / Remove CPN
888-756-4110 888-756-4110

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

Gylon® Ring Gasket, Series/Model: Style 3510, Nominal Size: 5 IN, Inside Diameter: 5.56 IN, Outside Diameter: 7-3/4 IN, Thickness: 1/16 IN, Class 150 Pressure Class, Material: PTFE With Barium Sulfate Filler, Finish/Color: Off-White, Industry Standards: ABS Approved, ASME B16.21, ASME B16.5 And B16.47, Maximum Pressure: 1200 PSI, Temperature Rating: -450 To 500 DEG F

Sub Brand	:	Gylon®
Item Name	:	Ring Gasket
Series/Model	:	Style 3510
Nominal Size	:	5 IN
Inside Diameter	:	5.56 IN
Outside Diameter	:	7-3/4 IN
Thickness	:	1/16 IN
Pressure Class	:	Class 150
Material	:	PTFE With Barium Sulfate Filler
Finish/Color	:	Off-White
Industry Standards	:	ABS Approved, ASME B16.21, ASME B16.5 And B16.47
Maximum Pressure	:	1200 PSI
Temperature Rating	:	-450 To 500 DEG F

Improved performance over conventional PTFE
Reduced product loss and emissions
Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
Excellent bolt torque retention
Withstands a wide range of chemicals for extended service life in a wide variety of applications
Cuts operational costs through reduced fluid loss, energy consumption, maintenance costs, inventory costs, waste
Improved material utilization reduces waste

Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/05015GAGRG_Spec.pdf
Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/120015ENVFFG_Broc.pdf
