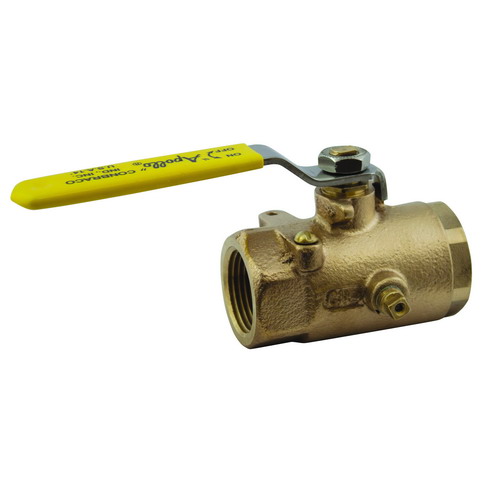

2-Piece Standard Ball Valve With Center Drain, Series/Model: Series 78-664, Nominal Size: 3/4 IN, Connection Type: FNPT, Pressure Rating: 600 PSI (CWP), Temperature Rating: -50 To 500 DEG F, Bronze Body Material, Lever Handle Operator Type, Handle Material: 304 Stainless Steel, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16, Finish/Color: Chrome Plated Ball, 3 IN Width, Lead Free: No, Other Physical Dimension: 2.12 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length

• Reinforced seats
• Mounting pad with bonding screw
• Blow-out proof stem design
• Adjustable packing gland
• Drainable ball cavity to prevent freeze damage
• RPTFE stem bearing, B16 retainer, gland nut and drain plug, stainless steel lever nut, brass screw

• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/0757866401BV_Spec.pdf
• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/1008710501BV_Broc.pdf
