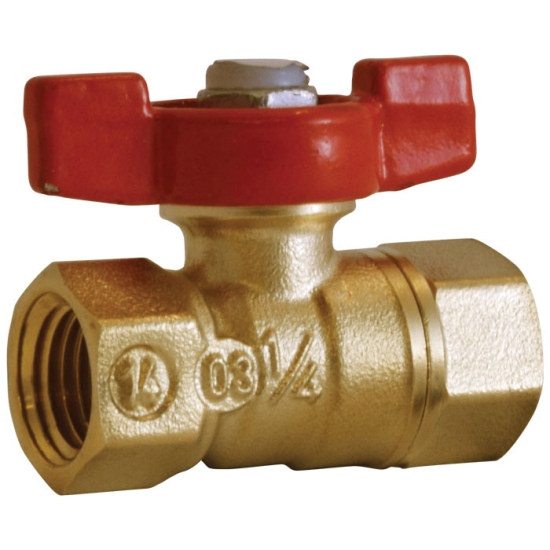

Large Port Mini Ball Valve, Series/Model: Model T-900MxF-T, Nominal Size: 1/4 IN, Connection Type: MNPT X FNPT, Pressure Rating: 150 PSI (WSP), 600 PSI (CWP), Forged Brass Body Material, Tee Handle Operator Type, Handle Material: Cast Aluminum, Industry Standards: NSF 61-G Approved, ANSI/ASME B1.20.1, Lead Free: No

• Durable forged brass construction
• Space-saving male-by-female end connections are ideal for confined piping installations
• T-handle equipped models can be used as gauge-cock isolation valves, without the gauge face obstruction associated with a lever-handle equipped valve
• Bottom-loaded blow-out-proof stem is a maintenance-free, dual o-ring seal design, eliminating the need to tighten a packing nut
• Improved 3M dyneon TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball-stem-handle rotating assembly

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050DBVL_Broc.pdf
• Submittal Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Legend_101-531_Submittal_Sheet.pdf
