1-1/2 BRASS C X C SINGLE UNION STD PORT BALL VALVE

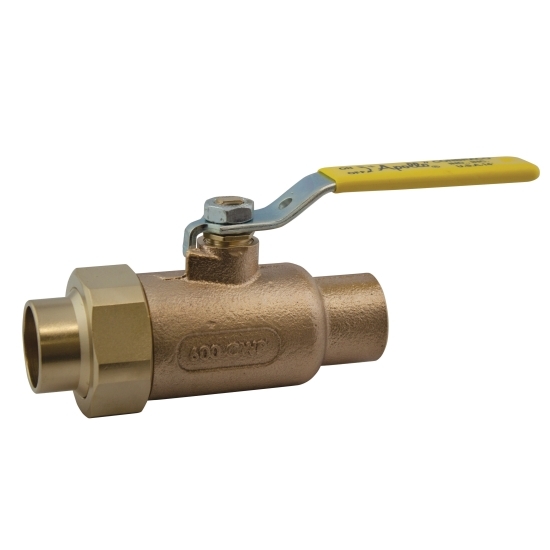

Apollo Valves 70-400 Bronze Lever Handle Single Union Ball Valve, 1-1/2 IN, Compression (Solder)
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 1507040701BV
- MPN: 70-407-01
- UPC: 670750672408
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Single Union Ball Valve, Series/Model: Series 70-400, Nominal Size: 1-1/2 IN, Connection Type: Compression (Solder), Pressure Rating: 600 PSI (CWP), 150 PSI (SWP), Temperature Rating: Up To 500 DEG F, 1-1/4 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Steel With Vinyl Grip, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16, Material Specification: Body: UNS C84400, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, WW-V-35C, Type: II Federal, CRN: OC10908.5C, 5.53 IN Width, Lead Free: No, Other Physical Dimension: 3.1 IN Inlet Center To Top Of Handle, 8 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 84
| Item Name | : | Ball Valve |
| Type | : | Single Union |
| Series/Model | : | Series 70-400 |
| Nominal Size | : | 1-1/2 IN |
| Connection Type | : | Compression (Solder) |
| Pressure Rating | : | 600 PSI (CWP), 150 PSI (SWP) |
| Temperature Rating | : | Up To 500 DEG F |
| Opening Size | : | 1-1/4 IN |
| Body Material | : | Bronze |
| Operator Type | : | Lever Handle |
| Handle Material | : | Steel With Vinyl Grip |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Packing Material | : | MPTFE Stem |
| Seat Material | : | RPTFE |
| Seal Material | : | PTFE |
| Material Standard | : | Body: ASTM B584, Ball And Stem: ASTM B16 |
| Material Specification | : | Body: UNS C84400 |
| Finish/Color | : | Zinc Plated Handle, Chrome Plated Ball |
| Industry Standards | : | MSS-SP-110 Compliant, WW-V-35C, Type: II Federal, CRN: OC10908.5C |
| Width | : | 5.53 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 3.1 IN Inlet Center To Top Of Handle, 8 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 84 |
| Weight | : | 5.440 LB |
The Apollo® 70-400 series is a standard port ball valve that is designed to be soft soldered in to lines without disassembly. Manufactured with proven ASTM materials.
- RPTFE seats and stuffing box ring
- Blow-out proof stem design
- Adjustable packing gland
