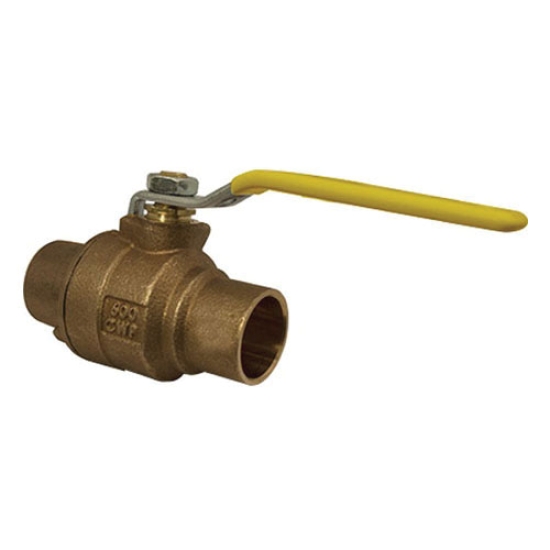

2-Piece Full-Port In-Line Standard Ball Valve, Series/Model: Series 77C-200, Nominal Size: 1-1/4 IN, Connection Type: Compression (Solder), Pressure Rating: 600 PSI (CWP), 150 PSI (SWP), Temperature Rating: Up To 500 DEG F, 1-1/4 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Steel With Vinyl Grip, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: MPTFE, Brass Gland, Seat Material: MPTFE, Seal Material: MPTFE, Material Standard: Body: ASTM B584, Ball, Stem And Gland: ASTM B16, Material Specification: Body: UNS C84400, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, 4.44 IN Width, Lead Free: No, Other Physical Dimension: 3.13 IN Inlet Center To Top Of Handle, 7.06 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 125

The Apollo® 77C "Contractor Series" ball valve features a dezincification resistant bronze body, premium "multi-fill" MPTFE seats And stem packing and a “Solid Ball” design that delivers true full-port flow performance. Cast And machined in Apollo’s South Carolina manufacturing plants utilizing proven ASTM materials.

• 29 IN-HG vacuum rating
• Blow-out proof stem design
• Adjustable stem packing
• Full port solid ball design
• 100% factory tested
• B584 bronze or B16 brass or B283 C37700 chrome plated retainer, zinc plated steel nut

• Installation Instruction https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/10077C10501BV_Inst.pdf
• Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/10077C10501BV_Spec.pdf
• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/cat_CPCAball_Broc.pdf
