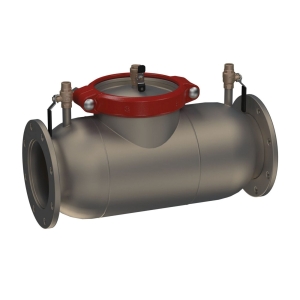

This 4 IN lead-free double check valve backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to back-siphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact and short lay length design with a single access cover for easy maintenance is approved for horizontal, vertical and retrofit installations. This assembly without the shut-off valves consists of a lightweight stainless steel body, spring loaded cam-check valves, and test cocks.

SilverBullet™ Double Check Valve Assembly Without Gate, Series/Model: Series 2000SS-LG, Nominal Size: 4 IN, Pressure Rating: 175 PSI, Temperature Rating: 33 - 110 DEG F, Stainless Steel Body Material, Industry Standards: AWWA C510-92, CSA B64.5 Certified, ASSE 1015, FM Approved, 40 IN Width, Lead Free: No, Other Physical Dimension: 9 IN Depth

• Modular construction
• No special tools are required
• One top entry access cover for easy maintenance
• The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
• Compact design
• Low pressure drop
• Stainless steel body
• The maximum working pressure is 175 PSI (12.06 BAR)
• Non-health hazard application

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/0502000BBV_Broc.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Ames_0690471_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Ames_0690471_Specification_Sheet.pdf
